Steam conditioning is a vital operation in feed milling, makes pelleting / extrusion easier and efficient. By choosing right kind of conditioners provides optimum preparation of mash with right combination of heat, moisture and retention time before pelleting. A complete set of dosing feeder and conditioner(s) gives a higher throughput with perfect PDI, better gelatinized pellet and improved digestibility at low power.

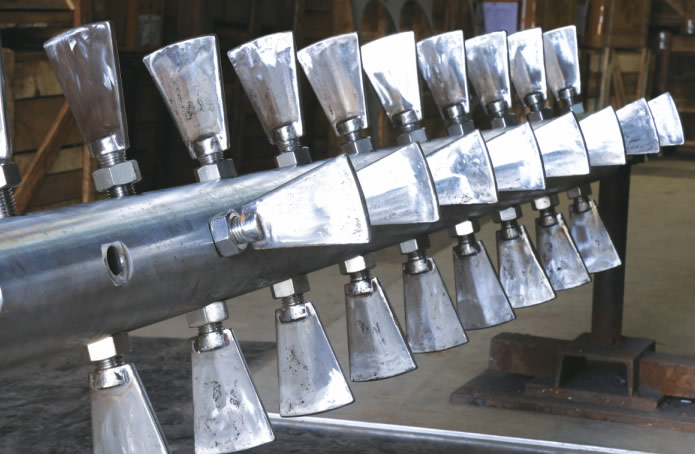

Forged Paddles

Conditioner Shaft

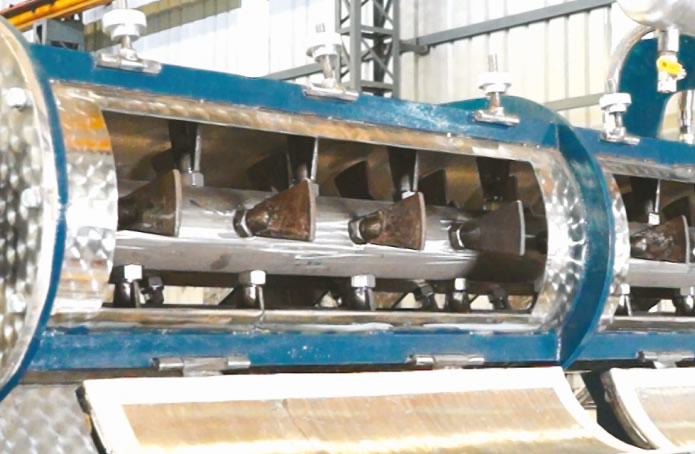

Non Sticking Rotor

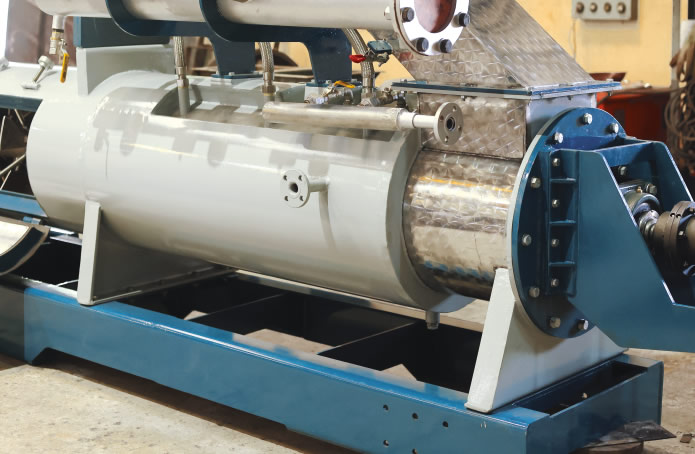

Jacketed Body

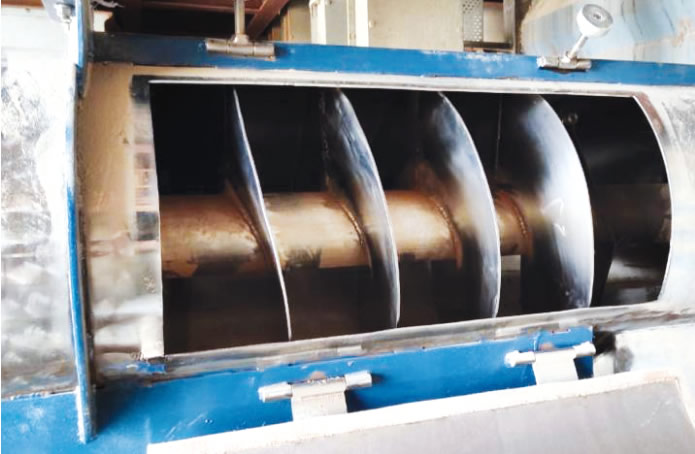

Retention Screw

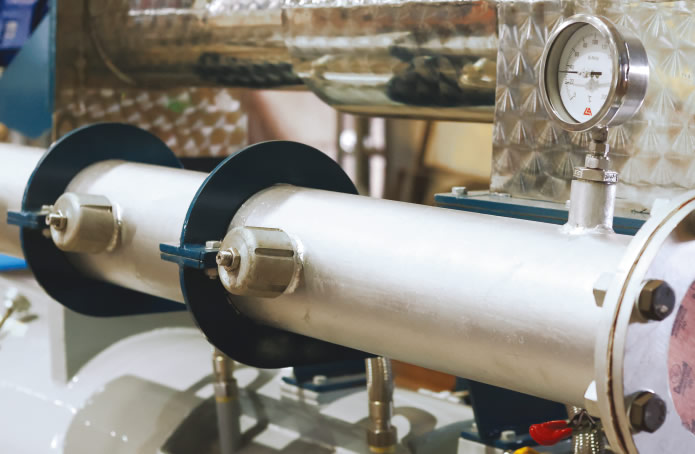

Steam Manifold

Design Features

• Material flow FIRST-IN-FIRST-OUT (FIFO) principle.
• Heavy duty, stainless steel construction coupled with low energy drives.
• Large hinged door for quick inspection, paddle adjustment and easy access for cleaning.
• Solid or hollow conditioner shaft as per application and torsional power.
• Conditioner shaft having flat seat with tapped holes for fixed positioning of paddles.
• Forged steed hardened paddles in different shapes for homogenous mixing.

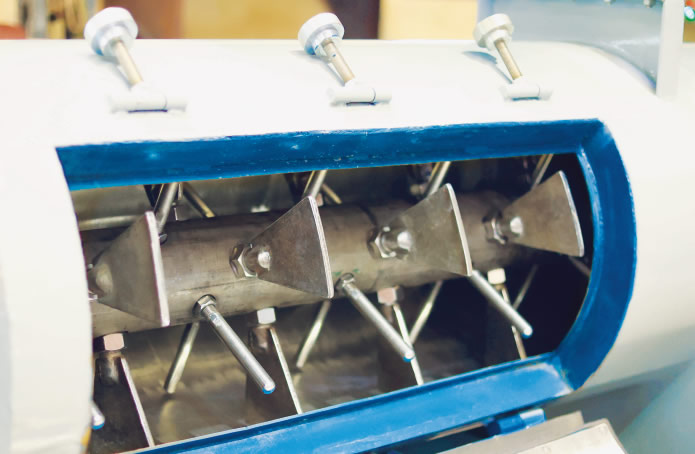

• Provision of height and angular adjustment of paddles for near zero leftover.
• Multiple orifice steam injection manifold with individual control distributes steam evenly.
• Power transmission through direct shaft mounted geared motor makes the unit compact.
• Conditioner shaft is mounted on bearings with grease seals for long duty hours.

Optional Features

• Excellent moisture absorption and sufficient retention time for proper gelatinization.
• Different models for high degree of customization.
• Real time process control through PLC for feed temperature, retention time and fill level control.
• Fill level of the conditioner barrel can be varied as per the steam absorption requirement of the feed.
• Variable rotor shaft speed for optimum conditioning.
