Crumbling Unit

"Small diet for beginners"


  • Variable speed fluted rotary feeder for uniform & even distribution of pellets along the length of the roll.

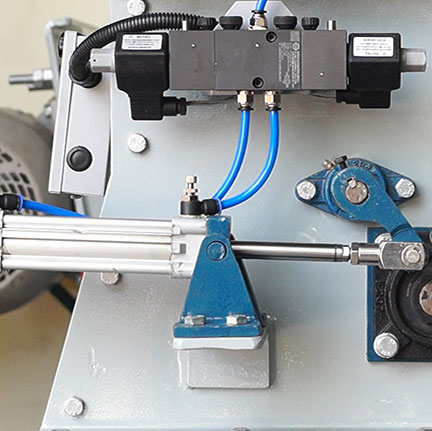

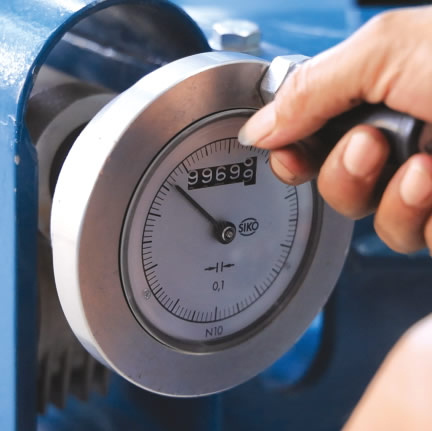

  • Precise roll- gap adjustment is achieved through PLC controlled motorised mechanism or by spring loaded geared unit.
  • Leak proof feed diverter flap for bypass operation.
  • Large inspection and cleaning door for easy cleaning and trouble free maintenance.

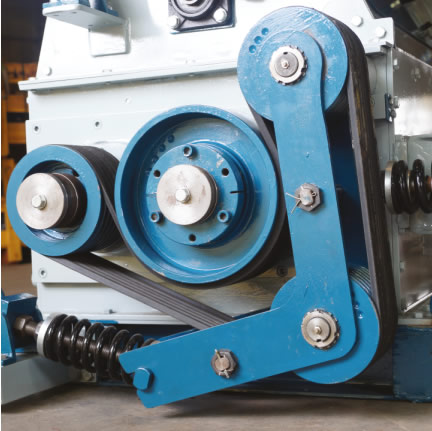

  • Special belt pulley drive for noiseless and slip free crumbling.

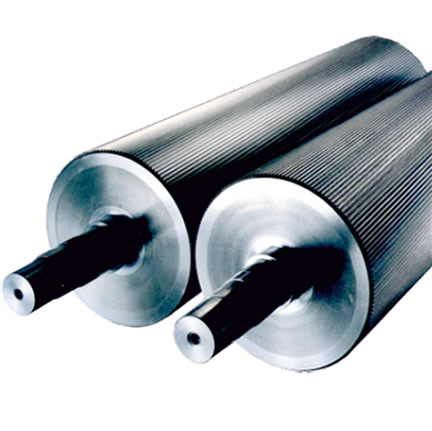

  • The crumbler rolls are pressure-cast chilled and grooved with different flutes (TPI) to suit the product sizing.
  • Differential rotational speed of rolls for perfect crumbling.

Model No. RK-CR Capacity(TPH) Power (hp)
20 x 100 T 5 - 8 7.5 - 10
20 x 120 T 8 - 12 10 - 15
25 x 120 T 10 - 15 10 - 20
25 x 150 T 12 - 20 15 - 25
30 x 150 T 18 - 25 20 - 30
* Poultry pellet 3.0-4.0 mm
