Counter Flow Cooler

"It's always safe to remain cool"


  • Air versus pellets counter flow effect enables the pellet to be cooled gradually thus minimizing the risk of "cooling shock".

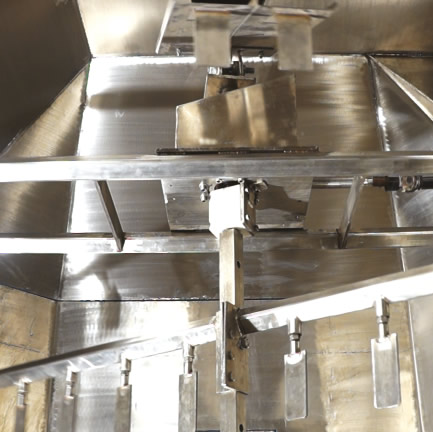

  • Rotary vane feeder for uniform feeding /distribution of pellets into the cooler chamber.
  • Complete construction in stainless steel grade 304.

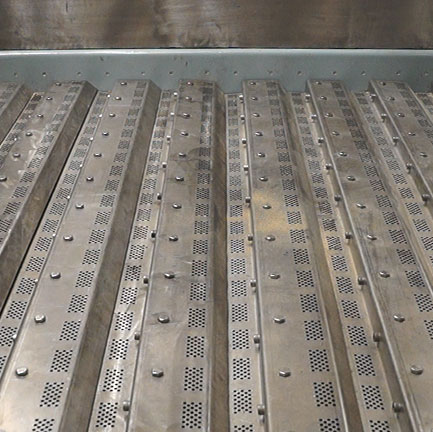

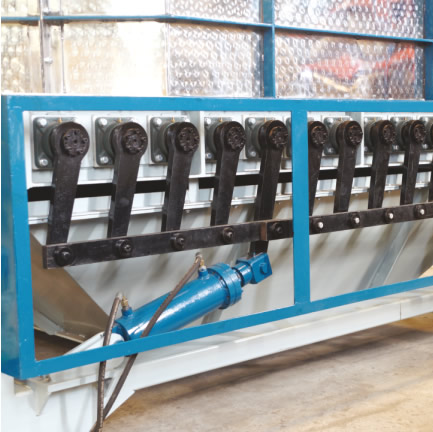

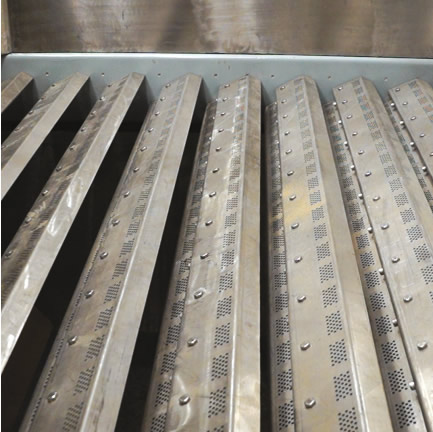

  • Sturdy grid discharge system - Eccentric sliding type for smaller models and Hydraulic swiveling flap type for bigger models.
  • Automatic discharge gate closure in the event of power failure to avoid spillage of pellets.
  • Adjustable level sensor for optimum cooling of the pellets in all weather conditions.
  • Easy access doors for maintenance and cleaning of cooling chamber.

Model No. RK-CFC Capacity (TPH) Power (hp) Volume (m3)
150 x 150 x 150 5 - 7 1 + 1 3.30
180 x 200 x 150 10 - 12 1 +1 5.40
200 x 220 x 150 12 - 15 1 + 1 6.60
220 x 250 x 150S 15 - 18 3 + 2 8.70
250 x 250 x 175S 20 - 24 5 + 2 10.90
280 x 280 x 175S 25 - 30 5 + 2 13.70
