R K Bio Feed Machine's pellet mills are used world wide in Animal feed (Cattle, Poultry, Ruminant & aqua), Biomass / Wood, Rice bran, Alfa-alfa, Chilli, Spices & Chemical pelleting.

Robust Base Frame

Hinged Door

Gear Lock

Taper Fitment

Middle Wearing Ring

Razor Sharp Cutting Knife

Spring Loaded Frame

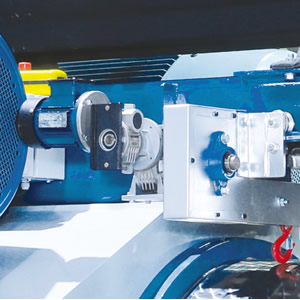

Auto Lubrication

Motorised Hoist

Space Saving Design

Force Feeder

Rear Wearing Ring

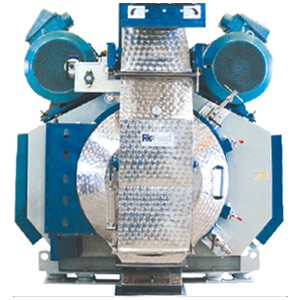

Twin Motor

Design Features

• Pellet Mills offers overall reliability, maximum efficiency, ease of operation & spares support that combines to provide lower operating cost.
• Provides wide range of die track width, main motor power and die speed to meet every customer’s requirement.

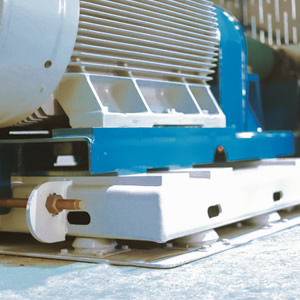

• Robust main base frame in box type construction resting on anti vibration mounts. Machined motor base frame to maintain proper alignment of drive train that results in maximum power transmission.
• Compact & small footprint, makes the pellet mill easy to install in limited space.

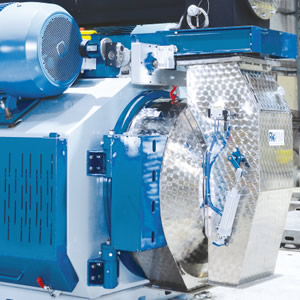

• Stainless steel pelleting door can be sliding or hinged (right or left hand) type. Perfect matched door with frame keeps powder and steam inside the pelleting chamber.

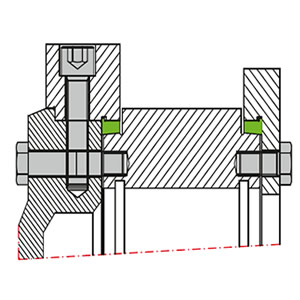

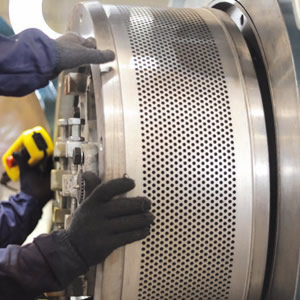

• 40 and 120 taper collar die helps in easy removal and replacement.

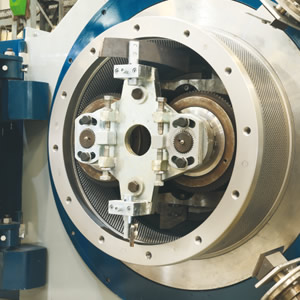

• Middle wearing ring dampens shocks on the die and increases life of front & rear reinforcement rings.
• Razor sharp hardened knife with stainless steel holding post gives perfect pellet cut length.
• Single piece forged, hardened quill shaft with heavy main bearings and wear resistant labyrinth seal absorbs enormous mechanical forces for years of trouble free operation.
• Hi- torque transmission V - Belts & dynamically balanced pulleys for wide range of die track speed. (5.75 - 8.5 m./sec.)
• Pneumatic diverter flap in down spout for overload protection.

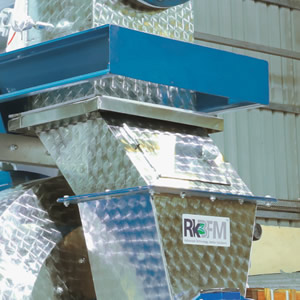

• Rare earth magnet in inlet chute protects the pellet die and rolls against ferrous impurity.

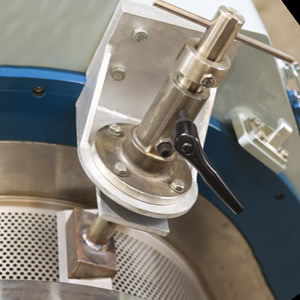

• Gear type lock roll assembly for precise die-roll gap adjustment.
• Pellet dies are reversible type and promotes uniform wear.
• Polyurethane painted silk matt finish.

Optional Features

• A set of four perfectly aligned center studs provides perfect parallelism between die surface and roller teeth for achieving even and uniform pellets through small die holes (0.8 - 2.0 mm).

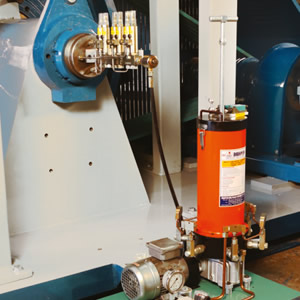

• Centralized auto lubrication for the press roll assembly and main shaft bearings.
• An integral motorised hoist permits easy handling of die, roll assembly, scraper plate & other heavy accessories.

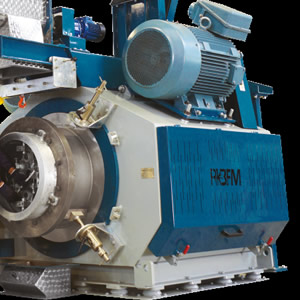

• Motor mounted above the robust fabricated body produces space saving design.
• Two stage belt drive system gives wide transmission ratio, covering track speed ranging from 5.0 to7.0m/sec.
• G-CHROME^® & G-CARB^® pellet dies for high finish gelatinized pellets.
• Integrated rear wearing ring on die holder offers rigid system for hard pelleting.

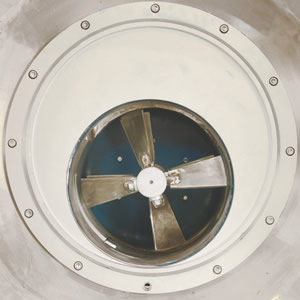

• Force feeder facilitates easy and uniform entry of low bulk density material (BD 100 - 200 kg/m) into the pelleting chamber.
